$11,699.00

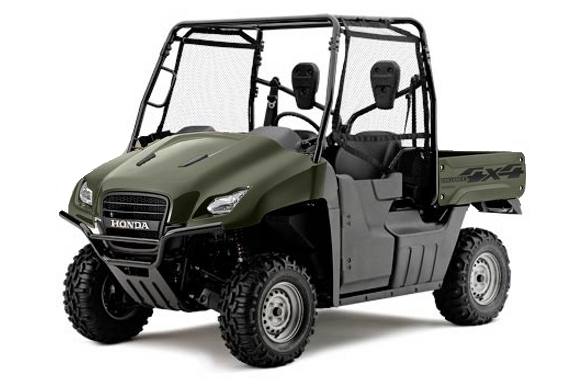

2010 Honda Big Red
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Has there ever been a machine where class-leading performance, safety and convenience come together so perfectly? (That's a rhetorical question.) The Big Red was built with you in mind, which is the only way Honda knows how: tough, rugged, and as packed with performance as it is with industry-leading features.


Like 3-point Emergency Locking Retractor (ELR) seatbelts inside a stout, secure four-pillar cab built with 1.6”-diameter tubing. Separate brake lines that ensure stopping power even if one of your lines gets damaged or severed. Fully independent front and rear suspension coupled with a wide stance for superior handling. And perhaps best of all, knowing that it's a Honda, with all the standard-setting quality and reliability for which we're legendary.

    Engine
    • Engine Type: 675cc liquid-cooled OHV single-cylinder four-stroke
    • Bore And Stroke: 102.0mm x 82.6mm
    • Compression Ratio: 9.2:1
    • Induction: Electronic fuel injection (PGM-FI): 40mm throttle body
    • Ignition: CD with electronic advance
    • Starter: Electric
    Drive Train
    • Clutch: Automatic
    • Transmission: Automotive-style with hydraulic torque converter, three forward gears and Reverse and three drive modes are 2WD, 4WD and 4WD with all-wheel differential lock
    • Driveline: Direct front and rear driveshafts
    Chassis / Suspension / Brakes
    • Front Suspension: Independent double-wishbone; 5.9-in. travel
    • Rear Suspension: Independent double-wishbone; 7.1-in. travel
    • Front Brake: 200mm hydraulic disc with 51.1mm caliper
    • Rear Brake: 200mm hydraulic disc with 30.3mm caliper
    • Front Tires: 25 x 10-12 bias
    • Rear Tires: 25 x 10-12 bias
    Dimensions
    • Length: 114.7 in.
    • Width: 64.0 in.
    • Height: 76.9 in.
    • Wheelbase: 75.7 in.
    • Seat Height: 34.0 in.
    • Bed Length Inside: 33.0 in.
    • Bed Width Inside: 53.0 in.
    • Bed Weight Capacity: 500 lbs.
    • Towing Capacity: 1200 lbs.
    • Ground Clearance: 10.3 in.
    • Turning Radius: 13.8 ft.
    • Curb Weight: 1,431 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    • Fuel Capacity: 7.9 gal., including 1.5-gal. reserve
    • Maximum Weight Capacity: 1,190 lbs. (Includes weight of cargo, occupants, accessories and trailer tongue load)
    • GVWR: 2,621 lbs. (maximum) Gross vehicle weight recommended
    Other
    • NOTE: Recommended for Drivers 16 years of age and older. Honda recommends that all MUV drivers read the owner's manual thoroughly.
    • Available Colors: Olive
    Factory Warranty Information
    • Duration: 1 year
    • Description: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

    Specifications

    Engine
    Engine Type 675cc liquid-cooled OHV single-cylinder four-stroke
    Displacement 675 cc
    Bore and Stroke 102.0mm x 82.6mm
    Cooling Liquid
    Compression Ratio 9.2:1
    Fuel System Electronic fuel injection (PGM-FI): 40mm throttle body
    Ignition CD with electronic advance
    Chassis
    Front Suspension Independent double-wishbone; 5.9-in. travel
    Front Brakes 200mm hydraulic disc with 51.1mm caliper
    Front Tire 25 x 10-12 bias
    Rear Suspension Independent double-wishbone; 7.1-in. travel
    Rear Brakes 200mm hydraulic disc with 30.3mm caliper
    Rear Tire 25 x 10-12 bias
    Dimensions
    Dry Weight 1,431 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Front Travel 5.9 in.
    Fuel Capacity 7.9 gal., including 1.5-gal. reserve
    Rear Travel 7.1 in.
    Wheelbase 75.7 in.
    Ground Clearance 10.3 in.
    Box Capacity 500 lbs.
    Towing Capacity 1200 lbs.
    Transmission
    Transmission Automotive-style with hydraulic torque converter, three forward gears and Reverse and three drive modes are 2WD, 4WD and 4WD with all-wheel differential lock
    Drive System Direct front and rear driveshafts
    General
    Colors Olive
    Warranty Duration: 1 year; Description: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

    Compare Models

    		 Print








    Year 2010
    Manufacturer Honda
    Model Big Red
    Style Side x Side
    MSRP* $11,699.00
    Chassis
    Front Suspension Independent double-wishbone; 5.9-in. travel
    Front Brakes 200mm hydraulic disc with 51.1mm caliper
    Front Tire 25 x 10-12 bias
    Rear Suspension Independent double-wishbone; 7.1-in. travel
    Rear Brakes 200mm hydraulic disc with 30.3mm caliper
    Rear Tire 25 x 10-12 bias
    Dimensions
    Dry Weight 1,431 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Front Travel 5.9 in.
    Fuel Capacity 7.9 gal., including 1.5-gal. reserve
    Rear Travel 7.1 in.
    Wheelbase 75.7 in.
    Ground Clearance 10.3 in.
    Box Capacity 500 lbs.
    Rack Capacity
    Towing Capacity 1200 lbs.
    Engine
    Engine Type 675cc liquid-cooled OHV single-cylinder four-stroke
    Displacement 675 cc
    Bore and Stroke 102.0mm x 82.6mm
    Cooling Liquid
    Compression Ratio 9.2:1
    Fuel System Electronic fuel injection (PGM-FI): 40mm throttle body
    Ignition CD with electronic advance
    General
    Speedometer
    Tachometer
    Odometer
    Colors Olive
    Warranty Duration: 1 year; Description: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan
    Transmission
    Transmission Automotive-style with hydraulic torque converter, three forward gears and Reverse and three drive modes are 2WD, 4WD and 4WD with all-wheel differential lock
    Drive System Direct front and rear driveshafts
